Calculating Wake Frequency for Sample Probe Assemblies
Ensure your SPA meets ASME and IEC standards
Introducing the Wake Frequency Solution Builder™from Conax
Conax customers frequently request engineering help to ensure they are choosing the proper Sample Probe Assembly (SPA) for a specific application. To make this process faster and easier for you, we’ve created the Wake Frequency Solution Builder™.
This new tool enables you to enter data for the specific SPA you need and receive immediate calculation results, based on ASME PTC 19.3 TW-2010 and/or IEC/TR 61831 standards. If there are problems with the configuration of your SPA, you’ll see exactly what needs to be adjusted. If the design is approved, you’ll see confirmation that each element tested has passed, and you can contact us to purchase the SPA.
The video demo on this page will show you how to successfully use our Wake Frequency Solution Builder™to help ensure you have the right SPA design for your specific application.

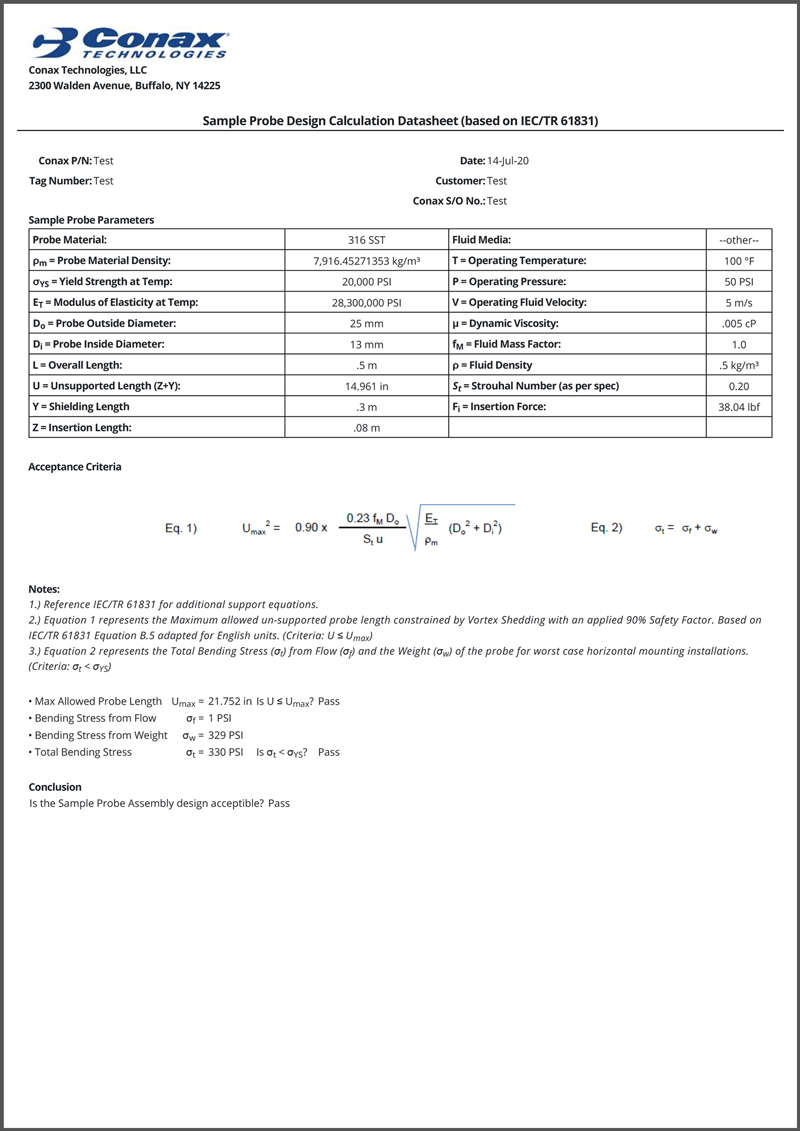

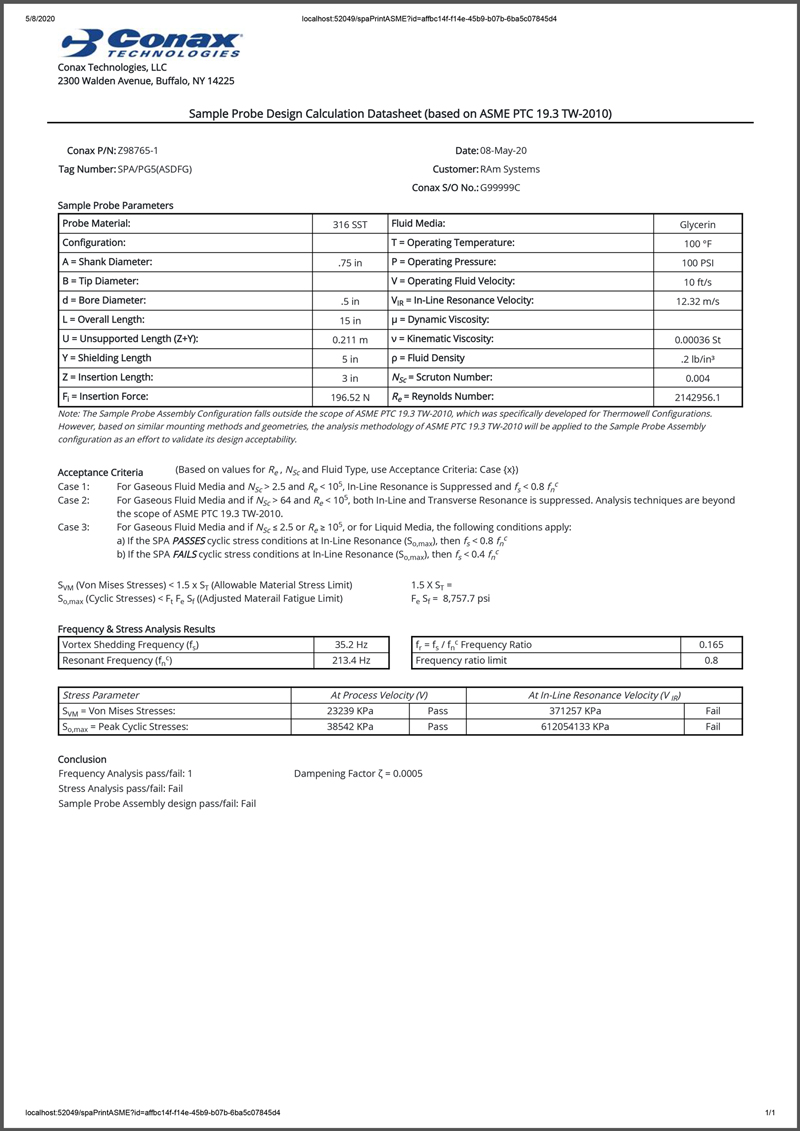

The Wake Frequency Solution Builder™provides you with an instant pass or fail rating online. You’ll receive comprehensive Sample Probe Design Calculation Datasheets based on ASME PTC 19.3 TW-2010 and/or IEC/TR 61831 calculations with your SPA order at no additional charge.
Additional help from Conax
We’ve designed the Wake Frequency Solution Builder™to be user friendly and easy to navigate, but we understand there may be times when you’ll need a higher level of help. So we’ve included a button on the calculator page that enables you to request help. Simply click “Get Help from Conax” to complete and submit the brief form. We’ll contact you with a cost estimate for the extra work that needs to be done to test your Sample Probe Assembly configuration.
